AMS‑M 2:1 / 3:1 Shrink Ratio DTL‑23053/5 & /6

Fluid Resistance at High Temperature

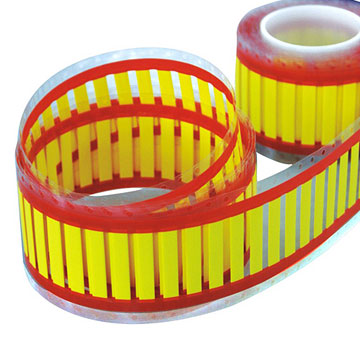

Identification Sleeves AMS‑M

Fluid resistant at high temperature, identification sleeves meets DTL‑23053/5 and DTL‑23053/6 standards. Permanent identification, computer printable, available in 2:1 and 3:1 shrink ratios with fast recovery for heat sensitive areas.

Permanent identification sleeves
Computer printable
2:1 and 3:1 shrink ratios
Fast recovery for heat sensitive areas

Sizes for 2X Middle Wall

Shrink ratio 2:1 – expanded and recovered dimensions

Part Number Expander As Supplied (mm) Recovered After Heating (mm)
Inside Diameter Flattened width Double‑wall thickness Inside Diameter Single wall thickness
HMS(AMS/DIN)-(H/M/CB)-2X-1.6-*M-*2.00±0.203.7±0.30.48±0.10≤0.790.45±0.06
HMS(AMS/DIN)-(H/M/CB)-2X-2.4-*M-*2.79±0.205.0±0.30.48±0.10≤1.180.49±0.06
HMS(AMS/DIN)-(H/M/CB)-2X-3.2-*M-*3.64±0.236.3±0.40.48±0.10≤1.590.51±0.06
HMS(AMS/DIN)-(H/M/CB)-2X-4.8-*M-*5.26±0.258.9±0.40.49±0.10≤2.360.54±0.06
HMS(AMS/DIN)-(H/M/CB)-2X-6.4-*M-*6.92±0.2811.5±0.40.50±0.10≤3.180.56±0.06
HMS(AMS/DIN)-(H/M/CB)-2X-9.5-*M-*10.2±0.3216.7±0.50.51±0.11≤4.750.59±0.06
HMS(AMS/DIN)-(H/M/CB)-2X-12.7-*M-*13.5±0.3621.8±0.60.52±0.11≤6.350.60±0.07
HMS(AMS/DIN)-(H/M/CB)-2X-19-*M-*20.1±0.4032.2±0.60.53±0.11≤9.530.62±0.07
HMS(AMS/DIN)-(H/M/CB)-2X-25-*M-*26.7±0.4542.5±0.70.55±0.12≤12.70.63±0.07
HMS(AMS/DIN)-(H/M/CB)-2X-38-*M-*39.8±0.5163.2±0.80.57±0.12≤19.10.64±0.07
HMS(AMS/DIN)-(H/M/CB)-2X-51-*M-*53.0±0.5683.9±0.90.58±0.13≤25.40.64±0.08
HMS(AMS/DIN)-(H/M/CB)-2X-76-*M-*79.4±0.56125.3±1.00.59±0.13≤38.10.64±0.09

Sizes for 3X Middle Wall

Shrink ratio 3:1 – expanded and recovered dimensions

Part Number Expander As Supplied (mm) Recovered After Heating (mm)
Inside Diameter Flattened width Double‑wall thickness Inside Diameter Single wall thickness
HMS(AMS/DIN)-(H/M/CB)-3X-1.6-*M-*2.00±0.203.7±0.30.47±0.10≤0.530.52±0.06
HMS(AMS/DIN)-(H/M/CB)-3X-2.4-*M-*2.79±0.205.0±0.30.47±0.10≤0.790.57±0.06
HMS(AMS/DIN)-(H/M/CB)-3X-3.2-*M-*3.64±0.236.3±0.40.48±0.10≤1.060.61±0.06
HMS(AMS/DIN)-(H/M/CB)-3X-4.8-*M-*5.26±0.258.9±0.40.49±0.10≤1.590.67±0.06
HMS(AMS/DIN)-(H/M/CB)-3X-6.4-*M-*6.92±0.2811.5±0.40.50±0.10≤2.360.71±0.06
HMS(AMS/DIN)-(H/M/CB)-3X-9.5-*M-*10.2±0.3216.7±0.50.52±0.11≤3.180.77±0.06
HMS(AMS/DIN)-(H/M/CB)-3X-12.7-*M-*13.5±0.3621.8±0.60.53±0.11≤4.750.80±0.07
HMS(AMS/DIN)-(H/M/CB)-3X-19-*M-*20.1±0.4032.2±0.60.55±0.11≤6.350.84±0.07
HMS(AMS/DIN)-(H/M/CB)-3X-25-*M-*26.7±0.4542.5±0.70.56±0.12≤8.470.86±0.07
HMS(AMS/DIN)-(H/M/CB)-3X-38-*M-*39.8±0.5163.2±0.80.57±0.12≤12.90.89±0.07
HMS(AMS/DIN)-(H/M/CB)-3X-51-*M-*53.0±0.5683.9±0.90.57±0.1≤17.20.90±0.08
HMS(AMS/DIN)-(H/M/CB)-3X-76-*M-*79.4±0.56125.3±1.00.57±0.13≤25.80.92±0.09
