Halogen Free DIN‑M 2:1 / 3:1 Shrink Ratio

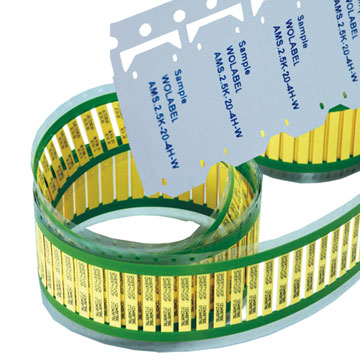

Halogen Free Identification Sleeves DIN‑M

Halogen free identification sleeves. Permanent identification, computer printable, available in 2:1 and 3:1 shrink ratios with fast recovery for heat sensitive areas.

Permanent identification sleeves

Computer printable

2:1 and 3:1 shrink ratios

Fast recovery for heat sensitive areas

Sizes for 2X Middle Wall

Shrink ratio 2:1 – expanded and recovered dimensions

Part Number	Expander As Supplied (mm)			Recovered After Heating (mm)
Part Number	Inside Diameter	Flattened width	Double‑wall thickness	Inside Diameter	Single wall thickness
HMS(AMS/DIN)-(H/M/CB)-2X-1.6-M-	2.00±0.20	3.7±0.3	0.48±0.10	≤0.79	0.45±0.06
HMS(AMS/DIN)-(H/M/CB)-2X-2.4-M-	2.79±0.20	5.0±0.3	0.48±0.10	≤1.18	0.49±0.06
HMS(AMS/DIN)-(H/M/CB)-2X-3.2-M-	3.64±0.23	6.3±0.4	0.48±0.10	≤1.59	0.51±0.06
HMS(AMS/DIN)-(H/M/CB)-2X-4.8-M-	5.26±0.25	8.9±0.4	0.49±0.10	≤2.36	0.54±0.06
HMS(AMS/DIN)-(H/M/CB)-2X-6.4-M-	6.92±0.28	11.5±0.4	0.50±0.10	≤3.18	0.56±0.06
HMS(AMS/DIN)-(H/M/CB)-2X-9.5-M-	10.2±0.32	16.7±0.5	0.51±0.11	≤4.75	0.59±0.06
HMS(AMS/DIN)-(H/M/CB)-2X-12.7-M-	13.5±0.36	21.8±0.6	0.52±0.11	≤6.35	0.60±0.07
HMS(AMS/DIN)-(H/M/CB)-2X-19-M-	20.1±0.40	32.2±0.6	0.53±0.11	≤9.53	0.62±0.07
HMS(AMS/DIN)-(H/M/CB)-2X-25-M-	26.7±0.45	42.5±0.7	0.55±0.12	≤12.7	0.63±0.07
HMS(AMS/DIN)-(H/M/CB)-2X-38-M-	39.8±0.51	63.2±0.8	0.57±0.12	≤19.1	0.64±0.07
HMS(AMS/DIN)-(H/M/CB)-2X-51-M-	53.0±0.56	83.9±0.9	0.58±0.13	≤25.4	0.64±0.08
HMS(AMS/DIN)-(H/M/CB)-2X-76-M-	79.4±0.56	125.3±1.0	0.59±0.13	≤38.1	0.64±0.09

Sizes for 3X Middle Wall

Shrink ratio 3:1 – expanded and recovered dimensions

Part Number	Expander As Supplied (mm)			Recovered After Heating (mm)
Part Number	Inside Diameter	Flattened width	Double‑wall thickness	Inside Diameter	Single wall thickness
HMS(AMS/DIN)-(H/M/CB)-3X-1.6-M-	2.00±0.20	3.7±0.3	0.47±0.10	≤0.53	0.52±0.06
HMS(AMS/DIN)-(H/M/CB)-3X-2.4-M-	2.79±0.20	5.0±0.3	0.47±0.10	≤0.79	0.57±0.06
HMS(AMS/DIN)-(H/M/CB)-3X-3.2-M-	3.64±0.23	6.3±0.4	0.48±0.10	≤1.06	0.61±0.06
HMS(AMS/DIN)-(H/M/CB)-3X-4.8-M-	5.26±0.25	8.9±0.4	0.49±0.10	≤1.59	0.67±0.06
HMS(AMS/DIN)-(H/M/CB)-3X-6.4-M-	6.92±0.28	11.5±0.4	0.50±0.10	≤2.36	0.71±0.06
HMS(AMS/DIN)-(H/M/CB)-3X-9.5-M-	10.2±0.32	16.7±0.5	0.52±0.11	≤3.18	0.77±0.06
HMS(AMS/DIN)-(H/M/CB)-3X-12.7-M-	13.5±0.36	21.8±0.6	0.53±0.11	≤4.75	0.80±0.07
HMS(AMS/DIN)-(H/M/CB)-3X-19-M-	20.1±0.40	32.2±0.6	0.55±0.11	≤6.35	0.84±0.07
HMS(AMS/DIN)-(H/M/CB)-3X-25-M-	26.7±0.45	42.5±0.7	0.56±0.12	≤8.47	0.86±0.07
HMS(AMS/DIN)-(H/M/CB)-3X-38-M-	39.8±0.51	63.2±0.8	0.57±0.12	≤12.9	0.89±0.07
HMS(AMS/DIN)-(H/M/CB)-3X-51-M-	53.0±0.56	83.9±0.9	0.57±0.1	≤17.2	0.90±0.08
HMS(AMS/DIN)-(H/M/CB)-3X-76-M-	79.4±0.56	125.3±1.0	0.57±0.13	≤25.8	0.92±0.09
