HMS‑M 2:1 / 3:1 Shrink Ratio DTL‑23053/5 & /6

Fluid Resistance at High Temperature

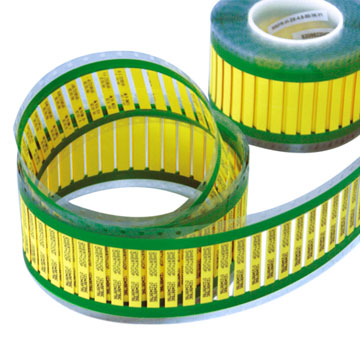

Identification Sleeves HMS‑M

Fluid resistant at high temperature, identification sleeves meets DTL‑23053/5 and DTL‑23053/6 standards. Permanent identification, computer printable, available in 2:1 and 3:1 shrink ratios with fast recovery for heat sensitive areas.

Permanent identification sleeves
Computer printable
2:1 and 3:1 shrink ratios
Fast recovery for heat sensitive areas

Sizes for 2X Middle Wall

Shrink ratio 2:1 – expanded and recovered dimensions

Part Number Expander As Supplied (mm) Recovered After Heating (mm)
Inside Diameter Flattened width Double‑wall thickness Inside Diameter Single wall thickness
HMS(AMS/DIN)-(H/M/CB)-2X-1.6-*M-* 2.00±0.20 3.7±0.3 0.48±0.10 ≤0.79 0.45±0.06
HMS(AMS/DIN)-(H/M/CB)-2X-2.4-*M-* 2.79±0.20 5.0±0.3 0.48±0.10 ≤1.18 0.49±0.06
HMS(AMS/DIN)-(H/M/CB)-2X-3.2-*M-* 3.64±0.23 6.3±0.4 0.48±0.10 ≤1.59 0.51±0.06
HMS(AMS/DIN)-(H/M/CB)-2X-4.8-*M-* 5.26±0.25 8.9±0.4 0.49±0.10 ≤2.36 0.54±0.06
HMS(AMS/DIN)-(H/M/CB)-2X-6.4-*M-* 6.92±0.28 11.5±0.4 0.50±0.10 ≤3.18 0.56±0.06
HMS(AMS/DIN)-(H/M/CB)-2X-9.5-*M-* 10.2±0.32 16.7±0.5 0.51±0.11 ≤4.75 0.59±0.06
HMS(AMS/DIN)-(H/M/CB)-2X-12.7-*M-* 13.5±0.36 21.8±0.6 0.52±0.11 ≤6.35 0.60±0.07
HMS(AMS/DIN)-(H/M/CB)-2X-19-*M-* 20.1±0.40 32.2±0.6 0.53±0.11 ≤9.53 0.62±0.07
HMS(AMS/DIN)-(H/M/CB)-2X-25-*M-* 26.7±0.45 42.5±0.7 0.55±0.12 ≤12.7 0.63±0.07
HMS(AMS/DIN)-(H/M/CB)-2X-38-*M-* 39.8±0.51 63.2±0.8 0.57±0.12 ≤19.1 0.64±0.07
HMS(AMS/DIN)-(H/M/CB)-2X-51-*M-* 53.0±0.56 83.9±0.9 0.58±0.13 ≤25.4 0.64±0.08
HMS(AMS/DIN)-(H/M/CB)-2X-76-*M-* 79.4±0.56 125.3±1.0 0.59±0.13 ≤38.1 0.64±0.09

Sizes for 3X Middle Wall

Shrink ratio 3:1 – expanded and recovered dimensions

Part Number Expander As Supplied (mm) Recovered After Heating (mm)
Inside Diameter Flattened width Double‑wall thickness Inside Diameter Single wall thickness
HMS(AMS/DIN)-(H/M/CB)-3X-1.6-*M-* 2.00±0.20 3.7±0.3 0.47±0.10 ≤0.53 0.52±0.06
HMS(AMS/DIN)-(H/M/CB)-3X-2.4-*M-* 2.79±0.20 5.0±0.3 0.47±0.10 ≤0.79 0.57±0.06
HMS(AMS/DIN)-(H/M/CB)-3X-3.2-*M-* 3.64±0.23 6.3±0.4 0.48±0.10 ≤1.06 0.61±0.06
HMS(AMS/DIN)-(H/M/CB)-3X-4.8-*M-* 5.26±0.25 8.9±0.4 0.49±0.10 ≤1.59 0.67±0.06
HMS(AMS/DIN)-(H/M/CB)-3X-6.4-*M-* 6.92±0.28 11.5±0.4 0.50±0.10 ≤2.36 0.71±0.06
HMS(AMS/DIN)-(H/M/CB)-3X-9.5-*M-* 10.2±0.32 16.7±0.5 0.52±0.11 ≤3.18 0.77±0.06
HMS(AMS/DIN)-(H/M/CB)-3X-12.7-*M-* 13.5±0.36 21.8±0.6 0.53±0.11 ≤4.75 0.80±0.07
HMS(AMS/DIN)-(H/M/CB)-3X-19-*M-* 20.1±0.40 32.2±0.6 0.55±0.11 ≤6.35 0.84±0.07
HMS(AMS/DIN)-(H/M/CB)-3X-25-*M-* 26.7±0.45 42.5±0.7 0.56±0.12 ≤8.47 0.86±0.07
HMS(AMS/DIN)-(H/M/CB)-3X-38-*M-* 39.8±0.51 63.2±0.8 0.57±0.12 ≤12.9 0.89±0.07
HMS(AMS/DIN)-(H/M/CB)-3X-51-*M-* 53.0±0.56 83.9±0.9 0.57±0.1 ≤17.2 0.90±0.08
HMS(AMS/DIN)-(H/M/CB)-3X-76-*M-* 79.4±0.56 125.3±1.0 0.57±0.13 ≤25.8 0.92±0.09
