PTFE Teflon UL224 VW‑1 -80°C to 260°C

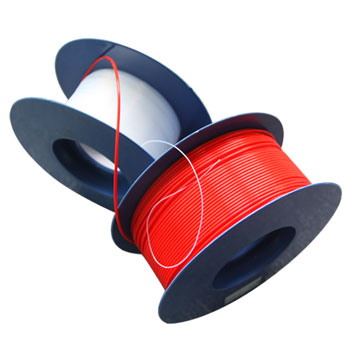

WF – PTFE Teflon Tubing For Extreme Electrical, Chemical & Thermal Environments

Specially designed for protecting applications in extreme electrical, chemical and thermal environments. Chemically inert, high temperature resistance, corrosion resistance (acid/alkali, chemical reagents, oil‑proof), high pressure resistance (26 kV/mm). UL224 VW‑1, UL file number E203950.

Continuous operating temperature: -80°C to 260°C

High pressure resistance: 26 kV/mm

Corrosion resistant (acid/alkali, chemical reagents, oil)

UL224 VW‑1C‑UL, CSA22.20FT

Dimensions & Packaging

AWG size, inner diameter, outer diameter (S / T / L options), and standard package length

AWG	I.D. (mm)	O.D. (mm) (S)	O.D. (mm) (T)	O.D. (mm) (L)	Standard Package (meter/coil or m/pc)
30	0.30±0.10	0.80±0.10	0.70±0.10	0.60±0.10	305
28	0.38±0.10	0.88±0.10	0.78±0.10	0.68±0.10	305
26	0.46±0.10	0.96±0.10	0.86±0.10	0.76±0.10	305
24	0.56±0.10	1.16±0.10	1.06±0.10	0.86±0.10	305
23	0.66±0.10	1.26±0.10	1.16±0.10	0.96±0.10	305
22	0.71±0.10	1.31±0.10	1.21±0.10	1.01±0.10	305
21	0.81±0.10	1.41±0.10	1.31±0.10	1.11±0.10	305
20	0.86±0.10	1.66±0.10	1.46±0.10	1.16±0.10	305
19	0.96±0.20	1.76±0.20	1.56±0.20	1.26±0.20	200
18	1.07±0.20	1.87±0.20	1.67±0.20	1.37±0.20	200
17	1.19±0.20	1.99±0.20	1.79±0.20	1.49±0.20	200
16	1.34±0.20	2.14±0.20	1.94±0.20	1.64±0.20	153
15	1.50±0.20	2.30±0.20	2.10±0.20	1.80±0.20	153
14	1.68±0.20	2.48±0.20	2.28±0.20	2.08±0.20	100
13	1.93±0.20	2.73±0.20	2.53±0.20	2.33±0.20	100
12	2.16±0.25	2.96±0.25	2.76±0.25	2.56±0.25	100
11	2.41±0.25 2.41±0.25	3.21±0.25	3.01±0.25	2.81±0.25	100
10	2.69±0.25	3.49±0.25	3.29±0.25	3.09±0.25	100
9	3.00±0.25	4.00±0.25	3.80±0.25	3.40±0.25	100
8	3.38±0.25	4.38±0.25	4.18±0.25	3.78±0.25	100
7	3.76±0.25	4.76±0.25	4.56±0.25	4.16±0.25	100
6	4.22±0.25	5.22±0.25	5.02±0.25	4.80±0.25	100
5	4.72±0.25	5.72±0.25	5.52±0.25	5.32±0.25	50
4	5.28±0.30	6.28±0.30	6.08±0.30	5.88±0.25	1.0 meter/pc
3	5.94±0.30	6.94±0.30	6.74±0.30	6.54±0.25	1.0 meter/pc
2	6.68±0.30	7.68±0.30	7.48±0.30	7.28±0.25	1.0 meter/pc
1	7.46±0.30	8.46±0.30	8.26±0.30	8.06±0.25	1.0 meter/pc
0	8.38±0.30	9.38±0.30	9.18±0.30	8.98±0.25	1.0 meter/pc

Technical Data

Physical, thermal and electrical properties

Relative density	2.14～2.20
Tensile strength (MPa)	≥25
Tensile strength at yield (MPa)	≥11
Elongation (%)	≥300
Arc resistance	＞300
Hardness (Shore D)	59～63

Melting point (°C)	327
Operating temperature (°C)	-80～260
Oxygen index (%)	＞90
Water absorption (%)	≤0.01
Linear expansion coefficient (×10⁵/°C) 21～100°C	10
Volume resistivity (Ω·cm)	≥45
