1kV / 10kV / 35kV Busbar Protection Chemical Resistant

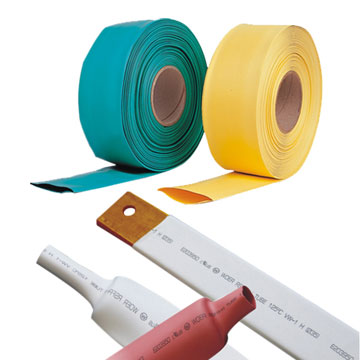

WMPG Heat Shrinkable Busbar Insulating Tube

High‑performance heat shrink tubing designed for busbar insulation in power distribution systems. Available for 1kV, 10kV and 35kV voltage classes. Prevents short circuits caused by small animals, protects against chemical corrosion, and provides flashover protection for safe maintenance.

Avoids short circuits from mice, snakes etc.

Prevents chemical corrosion (acid, alkali, salt)

Avoids accidental touch by maintenance personnel

Excellent flashover protection for busbar systems

Available Colors

Red Yellow Green Black

1kV Class – Dimensions & Packaging

Part numbers, busbar width, expanded & recovered dimensions

Part No.	Busbar Width (mm)	As Supplied		After Recovery		Std. Package (m/roll)
		Inner Diameter (mm)	Wall (mm)	Max ID (mm)	Wall (mm)
1kV WMPG 30	30	31.5±1.0	0.45±0.15	15	0.95±0.15	50
1kV WMPG 35	40	37.5±1.5	0.50±0.15	16	1.0±0.15	50
1kV WMPG 40	40	40.5±1.5	0.50±0.15	20	1.0±0.15	50
1kV WMPG 50	50	50.5±2.0	0.50±0.15	25	1.0±0.15	25
1kV WMPG 60	60	60±3.0	0.80±0.2	30	1.3±0.2	25
1kV WMPG 70	80	70±3.0	0.8±0.2	32	1.5±0.3	25
1kV WMPG 80	80/100	80±3.0	0.8±0.3	40	1.5±0.3	25
1kV WMPG 90	100	90±4.0	0.8±0.3	43	1.5±0.3	25
1kV WMPG 100	100/120	100±4.0	0.8±0.3	50	1.5±0.3	25
1kV WMPG 120	150	120±4.0	0.8±0.3	60	1.5±0.3	25
1kV WMPG 150	180	150±4.0	0.8±0.3	75	1.5±0.3	25

10kV Class – Dimensions & Packaging

Part numbers, busbar width, expanded & recovered dimensions

Part No.	Busbar Width (mm)	As Supplied		After Recovery		Std. Package (m/roll)
		Inner Diameter (mm)	Wall (mm)	Max ID (mm)	Wall (mm)
10kV WMPG 20	20	20±0.8	1.0±0.2	9	2.5±0.2	25
10kV WMPG 30	30	30±0.8	1.0±0.2	13	2.5±0.2	25
10kV WMPG 40	40	40±1.0	1.2±0.2	15	2.5±0.2	25
10kV WMPG 50	50	50±2.0	1.2±0.2	20	2.5±0.2	25
10kV WMPG 60/65	60	65±3.0	1.2±0.2	24	2.5±0.2	25
10kV WMPG 80	80/100	80±3.0	1.2±0.3	32	2.8±0.3	25
10kV WMPG 100	100/120	100±4.0	1.2±0.3	40	2.8±0.3	25
10kV WMPG 120	150	120±4.0	1.2±0.3	48	2.8±0.3	25
10kV WMPG 150	200	150±4.0	1.2±0.3	60	2.8±0.3	25
10kV WMPG 180	Max	180±5.0	1.2±0.3	70	2.8±0.3	25
10kV WMPG 210	Max	210±5.0	1.2±0.3	80	2.8±0.3	20

35kV Class – Dimensions & Packaging

Part numbers, busbar width, expanded & recovered dimensions

Part No.	Busbar Width (mm)	As Supplied		After Recovery		Std. Package (m/roll)
		Inner Diameter (mm)	Wall (mm)	Max ID (mm)	Wall (mm)
35kV WMPG 30	30	30±1.0	2.0±0.3	13	4.0±0.3	15
35kV WMPG 40	40	40±1.0	2.0±0.3	15	4.0±0.3	15
35kV WMPG 50	50	50±2.0	2.2±0.3	20	4.5±0.3	15
35kV WMPG 60/65	60	65±2.0	2.2±0.3	24	4.5±0.3	15
35kV WMPG 80	80/100	80±3.0	2.2±0.3	32	4.5±0.3	15
35kV WMPG 100	100/120	100±4.0	2.5±0.3	40	4.5±0.3	15
35kV WMPG 120	150	120±4.0	2.5±0.3	48	5.0±0.3	15
35kV WMPG 150	200	150±4.0	2.5±0.3	60	5.0±0.3	15
35kV WMPG 180	Max	180±5.0	2.5±0.3	70	5.5±0.3	15
35kV WMPG 210	Max	210±5.0	2.5±0.3	80	5.5±0.3	15

*Standard package: meters per roll (m/roll). Other sizes or custom colours available on request.

These busbar tubes are designed to provide reliable insulation and protection in switchgear, panel boards, and busbar trunking systems. Available in four standard colours for phase identification.
