Bus Bar Cover
Heat Shrinkable

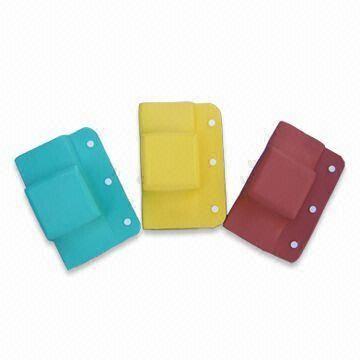

Heat Shrinkable Protective Cover on Bus Bar
Product Dimensions (unit: mm) – available in I, T and L type covers for busbar sizes from 30×8 to 150×10.
Product Dimensions (unit: mm) – available in I, T and L type covers for busbar sizes from 30×8 to 150×10.
I type, T type and L type covers for different busbar sizes
| Size (A×B) | I type | T type | L type | ||||||
|---|---|---|---|---|---|---|---|---|---|
| L | W | H | L | W | H | L | W | H | |
| 30×8 | 95 | 35 | 50 | 105 | 35 | 60 | 70 | 35 | 60 |
| 40×8 | 125 | 45 | 50 | 140 | 45 | 60 | 75 | 45 | 55 |
| 50×8 | 135 | 55 | 55 | 155 | 55 | 65 | 90 | 55 | 65 |
| 60×8 | 165 | 65 | 75 | 165 | 65 | 75 | 100 | 65 | 75 |
| 80×10 | 185 | 85 | 75 | 195 | 85 | 75 | 130 | 85 | 75 |
| 100×10 | 220 | 105 | 75 | 215 | 105 | 75 | 140 | 105 | 75 |
| 120×10 | 235 | 125 | 75 | 245 | 125 | 75 | 165 | 125 | 75 |
| 150×10 | 260 | 155 | 75 | 285 | 155 | 75 | 195 | 155 | 75 |
Remark: L = Length of Covering; W = Width of Covering; H = Height of Covering; A = Width of Busbar; B = Thickness of Busbar.
Special specifications covering according to customer requirements by drawing special production.
