Heat Shrink Tape Cross‑linked Polyolefin -55°C to 105°C

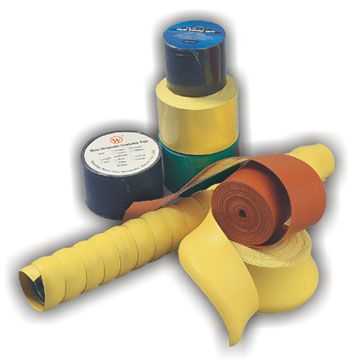

WRSJD Cross‑linked Heat Shrinkable Insulation Tape

Cross‑linked polyolefin with environmental friendly hot‑melt adhesive. Provides reliable insulation, waterproof sealing and anti‑corrosion protection for cable repairs, pipe sealing, busbar insulation and joint protection.

Partial repair of cable protective layers

Waterproof treatment for heat shrinkable cable joints

Anti‑corrosion and seal of pipes

Busbar insulation in switchgear and power stations

Withstand temperature: -55°C to 105°C

Shrink temperature: 100°C

Self shrink ratio: >30%

Available Colors

Black Red Yellow Green

Dimensions & Packaging

Standard width, thickness and roll length

Model	Standard Width (mm)	Standard Thickness (mm)	Standard Package (m)
WRSJD-0825	25	0.8±0.1	5 or 10
WRSJD-0850	50	0.8±0.1	5 or 10
WRSJD-0875	75	0.8±0.1	5 or 10
WRSJD-08100	100	0.8±0.1	5 or 10
WRSJD-1025	25	1.0±0.1	5 or 10
WRSJD-1050	50	1.0±0.1	5 or 10
WRSJD-1075	75	1.0±0.1	5 or 10
WRSJD-10100	100	1.0±0.1	5 or 10

*Roll length: 5 or 10 meters per roll (custom lengths available on request).

Technical Data

Electrical and mechanical properties

Material Specifications

Property	Test Method	Standard Value
Tensile strength (MPa)	ASTM D638	≥12
Elongation (%)	ASTM D638	≥400
Tensile strength after aging (MPa)	ASTM D2671 / 120°C,168h	≥10
Elongation after aging (%)	ASTM D2671 / 120°C,168h	≥320
Volume resistance (Ω·cm)	IEC 93	≥1×10¹⁴
Dielectric strength (kV/mm)	IEC 243	≥20

← swipe →

Shrink temperature: 100°C · Self shrink ratio >30% · Cross‑linked polyolefin with hot‑melt adhesive.
